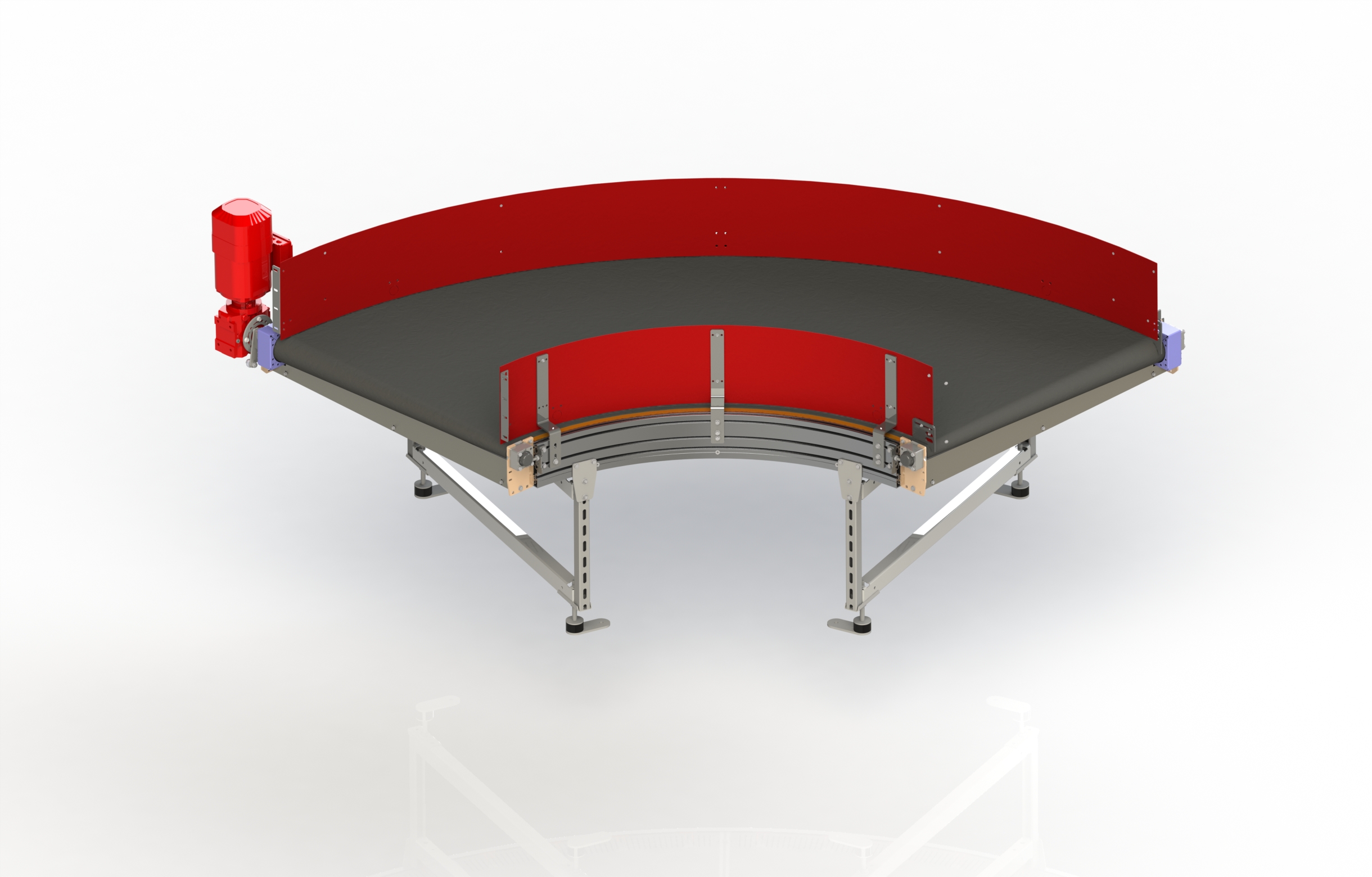

Power Curve
The curve conveyor is used to change direction within the conveyor system and provide a smooth flow of baggage.
General Dimensions
Power curve
Key Features
- Standard angles: 15o, 30o, 45o ,90o ,120o , 135o and 180o. Other angles over 15° may be provided on request.
- Chain driven positive drive and no slippage.
- Quick belt change without removing the drive motor.
- Suitable for a wide range of temperatures when compared with other friction drive unit.
- Passenger tamper-proof weigh scale.
- Waterfall effect to assist baggage transfer between conveyors.
Technical Specifications
- Sort Rate: Conveyor speeds of more than 3 m/sec
- Centerline radius: Crowned 90mm diameter roller with precision ball bearings and grease-packed sealed bearings.
- Belt Width: 1060mm between side guides.
- Conveyor Belt: Flexam EF 10/2+A22 Black AS FR
- Maximum loading: 75kg per metre
