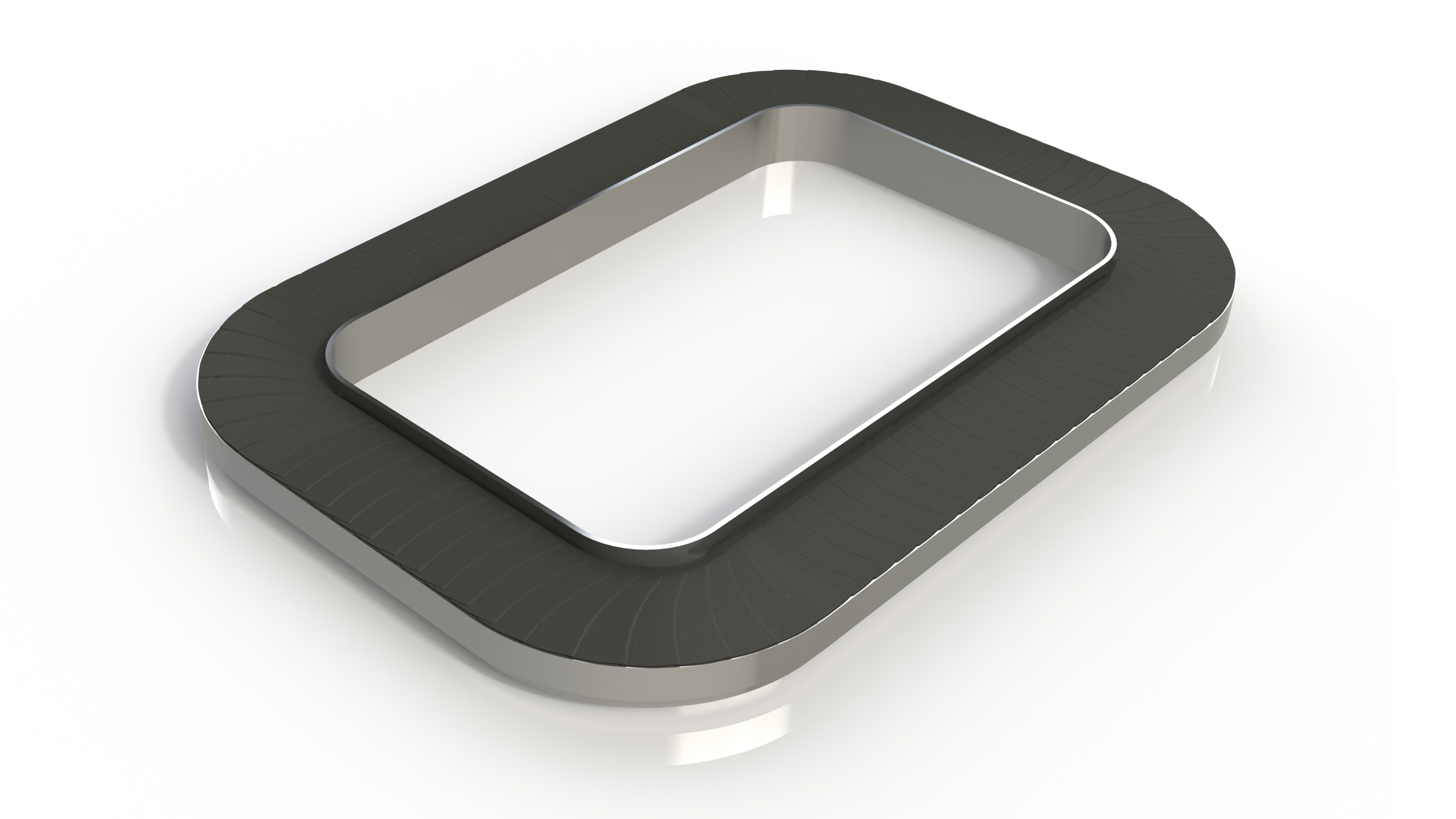

Overlapping Slat Carousel
The carousel is designed to recirculate baggage on a continuous basis until it is removed from the conveyor. The overlapping slat carousel can be used as an arrivals carousel or make-up loop.
Whilst the design of the conveyor modules has been standardised, it allows for many different configurations of length and top of belt height to suit different applications.
General Dimensions
Key Features
- Lightweight and innovative construction
- Glass reinforced composite drive chain.
- Reduced energy consumption and Recyclable materials.
- Flame retardant slats.
- Low Noise (friction drive).
- No tools required for slat installation or removal.
Types of Overlapping Slat Carousels
- Arrivals Reclaim Carousel: Typically, 410mm (top of slat) in height to allow for easy removal of baggage. Stainless steel clad in passenger area.
- Departures Make-up Carousel: Located airside. Typically 600 mm to 800 mm in height to allow for easy unloading of baggage into / onto a container / trailer. Galvabond or powder coated finish.
Technical Specifications
- General: Live Load (Peak) 150 kg/m, Static Load (Max) 270 k/m, Noise Level 59dB(A), Standard Speed 0.3 m/s to 0.5 m/s (30 m/minute), Slats Flame retardant, Slat Width 1000mm
- Trim: Stainless steel (public area), Galvanised or powder coated mild steel (air side)
- Frame: Cross members 5mm mild steel, Side channels 3mm mild steel
- Carriage: Mild steel powder coated
- Chain Link: Made from glass reinforced composite. Each individual link has a cam adjustment take up of 5mm negating the need for site cut frame sections at installation.
