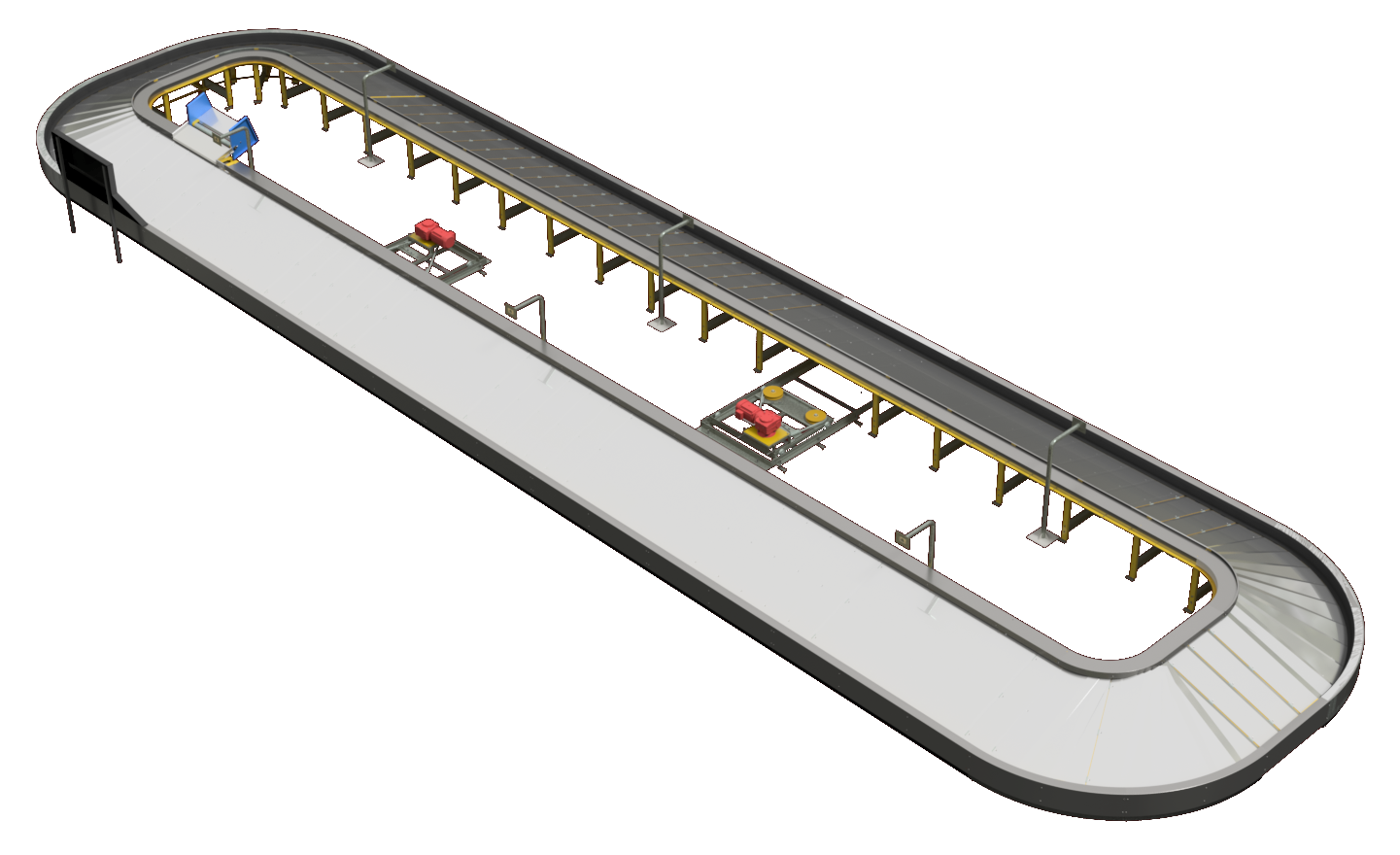

Inclined Carousel
The carousel is designed to recirculate baggage on a continuous basis until it is removed from the conveyor. The Incline claim carousel can be used as an arrivals carousel or make-up loop.
Whilst the design of the conveyor modules has been standardised, it allows for different configurations in length and height to suit different applications.
A minimum conveyor height of 450mm can be achieved (measured to the top of the front trim). Inclined carouseds are used to maximise the number of bags which can be stored on a unit.
General Dimensions
Drive Unit / Straight Module
Key Features
- Fritction drive.
- Direct shaft mounted gearmotor provides drive.
- Sealed for life bearings used throughout in order to minimise maintenance.
- Modular components provide flexibility in design.
- Urethane coated load and guide wheels for quiet operation.
Types of Inclined Carousels
- Arrivals Reclaim Carousel: Typically, 450mm in height to allow for easy removal of baggage. Stainless steel clad in passenger area.
- Departures Make-up Carousel: Located airside. Typically 450 mm to 650 mm in height to allow for easy unloading of baggage into / onto a container / trailer. Galvabond or powder coated finish.
Technical Specifications
- Live Load (Peak): Crowned 113mm diameter with a 0.37kW internal motor providing a conveyor speed of 0.5m/sec.
