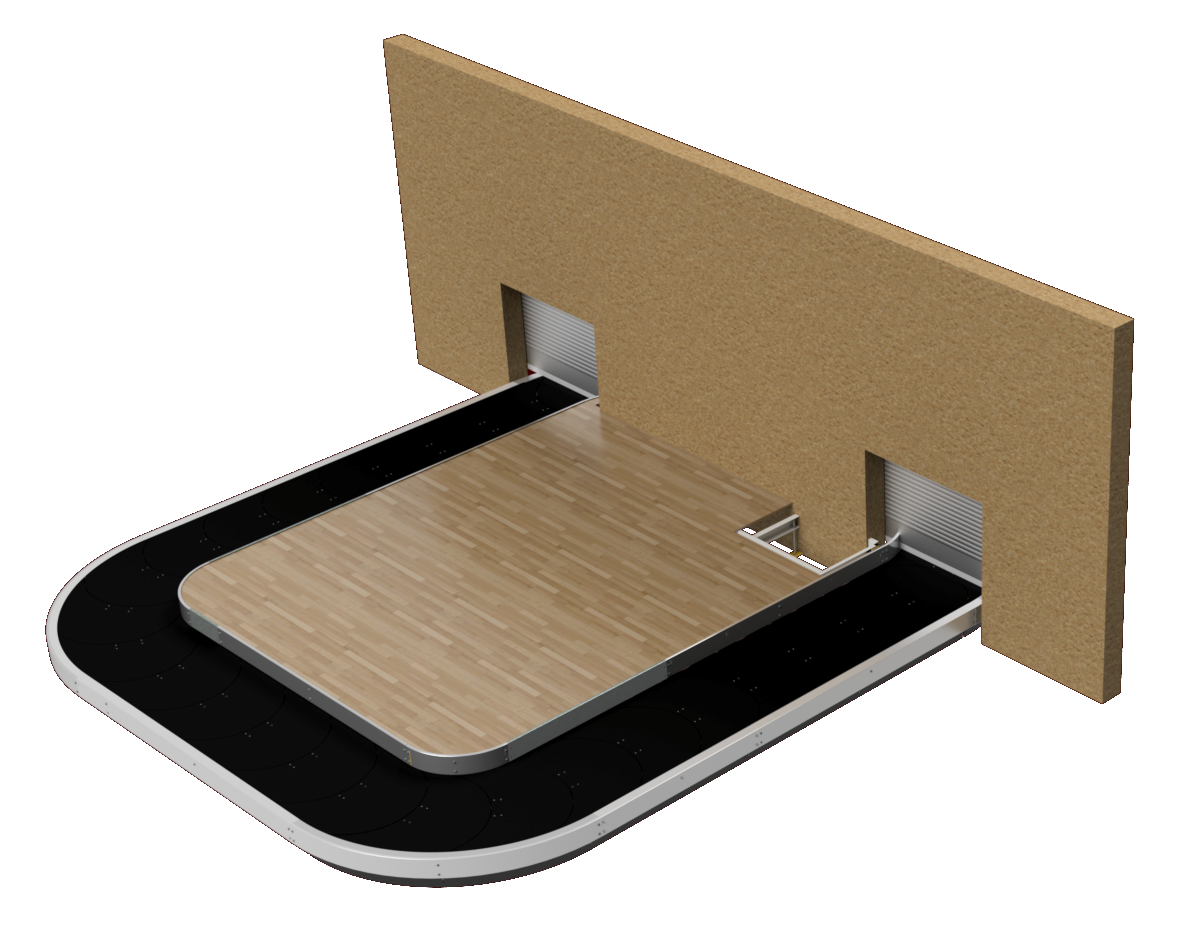

Crescent Pallet Carousel (1000W)
The carousel is designed to recirculate baggage on a continuous basis until it is removed from the conveyor. The crescent pallet carousel can be used as an arrivals carousel or make-up loop.
Whilst the design of the conveyor modules has been standardised, it allows for many different configurations length and pallet height to suit different applications.
General Dimensions
Key Features
- Caterpillar drive to ensure positive engagement at all times.
- Direct shaft mounted gearmotor provides drive to the sprockets.
- Low minimum conveyor height of 310mm.
- Sealed for life bearings used throughout in order to minimise maintenance.
- Modular components provide flexibility in design and future expansion.
Types of Crescent Pallet Carousels
- Arrivals Reclaim Carousel: Typically, 320 mm in height to allow for easy removal of baggage. Stainless steel clad in passenger area.
- Departures Make-up Carousel: Located airside. Typically 600 mm to 800 mm in height to allow for easy unloading of baggage into / onto a container / trailer. Galvabond or powder coated finish.
Technical Specifications

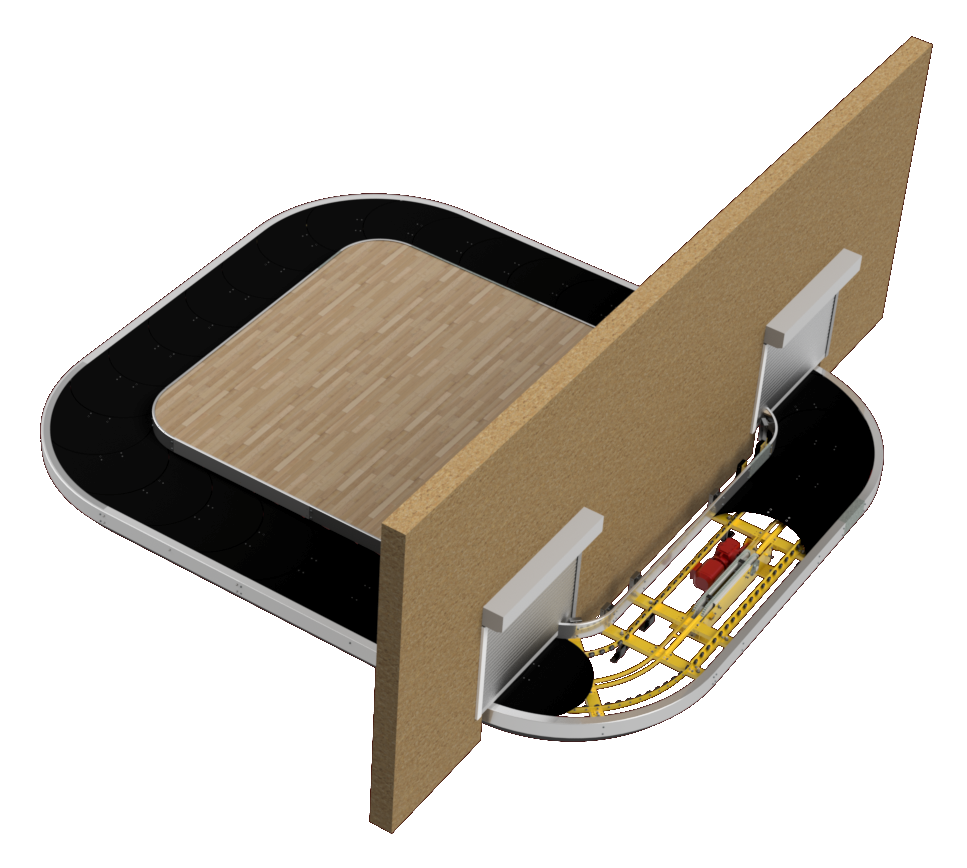

- Drive Unit: Caterpillar drive unit floor mounted and consists of a gearmotor sized to suit the required drive. The gearmotor is shaft mounted directly to the drive head shaft.
- Frame: Fabricated mild steel construction with M16 threaded rod for vertical adjustment and precise levelling. A sound, reasonably level floor is required for simple installation and fixing.
- Cladding: 2.5 mm thick 304 grade stainless steel with #4 finish horizontal grain on surfaces exposed to public view. 3 mm powder coated or galvabond mild steel airside.
- Conveyor Pallet: Crescent shaped polyurethane covered, steel or wooden composite core accurately moulded to maintain correct relationship between segments when negotiating turns.
